AIYIMA DAC-A5 MAX Wireless Bluetooth Desktop Headphone Amplifier, USB DAC & Preamplifier
S$189.00
S$129.00
Why You Should Get It
- Dual Headphone Output; upgrade the fiber base, optimize the circuit board design, redefine quality and sound.
- Mac/PC plug-In-play, no special software is needed, RCA and dual headphones outputs.
- USB and optical coaxial S/PDIF inputs, can choose the input mode. With the volume control knob that can adjust the headphones as well as the RCA output.
- Hi-Fi headphone amp chips TPA6120,; with headphones protect circuit for any 16~600 Ohm headphones
- Stream bit-perfect 24bit/192Hkz HD with low jitter, built-in Cirrus SA9137 +TPA6120 + ESS9018K2M DAC chips, as desktop DAC, stereo headphone amp, and preamp.
Note: Dolby signal input is not supported
Warranty
1 year warranty (local)
In The Box
- 1 x AIYIMA DAC-A5 MAX
- 1 × PC-USB cable
- 1 x Coax cable
- 1 x 12V power adapter
- 1 × User manual
| Product Availability | Available (current model) |
| Product Type | DAC (Digital-Analog Converter), Amplifier (Headphone), Amplifier (Preamplifier) |
| Style/Type | Desktop |
| Features | Bluetooth, Line-out, Dual Headphone Output |
| Connectivity | Wireless & Wired |
| DAC | ESS Sabre ES9018K2M |
| Op-Amp / Amplifier | Texas Instruments NE5532 / Texas Instruments TPA6120 |
| Amplifier Class | Class A/B |
| Power Amplification Type | Solid State |
| Bluetooth Version | v5.1 |
| Bluetooth Codecs | SBC, AAC, aptX, aptX Low Latency (aptX-LL), aptX HD, LDAC |
| Sampling / Bitrate | Up to 24Bit/384kHz, DSD256 (via USB) |
| Signal-to-Noise Ratio (SNR) | > 118dB |
| Total Harmonic Distortion (THD) | 0.005% |
| Max Output Power (mW / W) | 500mW@32Ω |
| Voice Assistants | - None - |
| Input Connectivity Options | USB Type-B (USB-B) [Data/Audio Signal], Coaxial (SPDIF), Optical TOSLINK (SPDIF), Bluetooth |
| Output Connectivity Options | RCA (Line-Out), 6.35mm Stereo, 3.5mm Stereo |
| Driveability (Output Impedance) (Ω) | 16~600Ω |
| Colour | Black |

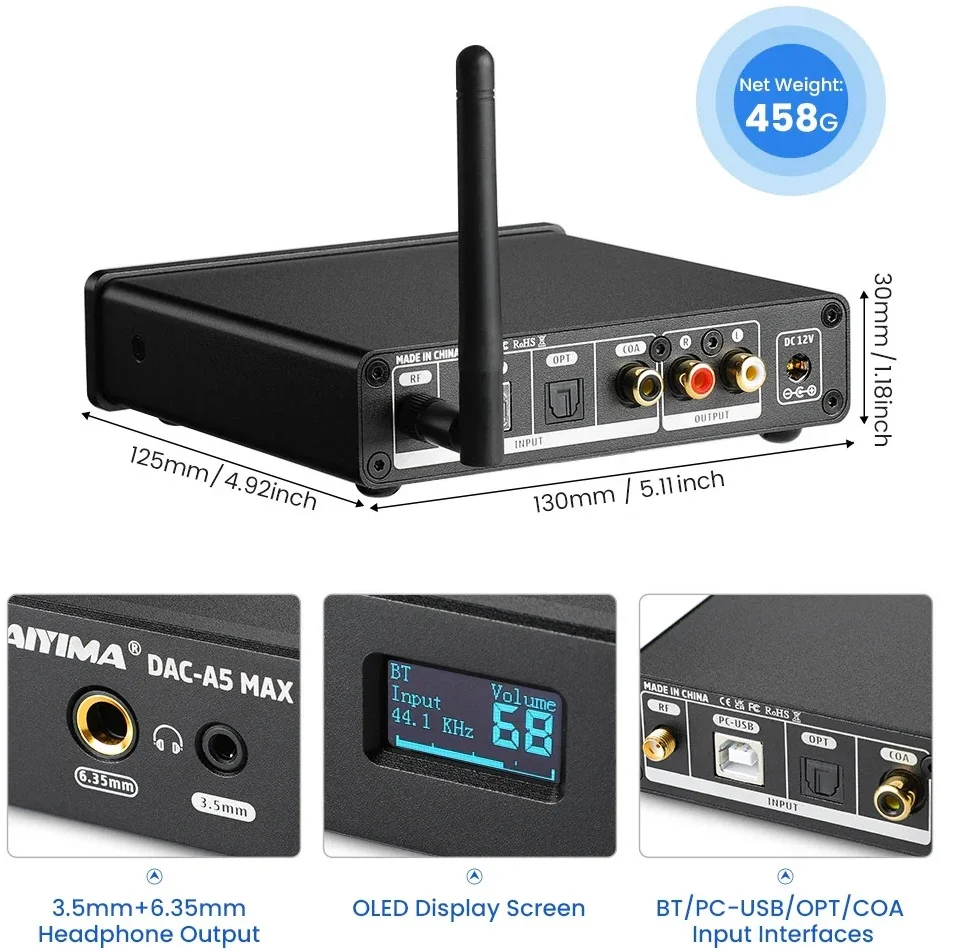

| Product Dimensions | 125 x 133 x 33mm (Lx WxH) |
| Product Weight (g) | 458g |
| Warranty | 1 year warranty (local) |
| Package Contents |
|
| Additional Tech Specs |
|
