cocktailAudio X10 Component, CD Storage (Ripper) & Music Streamer All-in-one Smart Hi-Fi Media System

Revolutionary HD HiFi Audio System, CD storage, Music Streamer, Music Server and Advanced Internet Radio

X10 is a perfect and excellent HD HiFi Audio System with CD storage, Music Streamer, Music Server and advanced Internet Radio. Basically it looks like normal audio CD Player. Of course, it can play audio CD directly like normal CD Player. But, it has various amazing functions such as HiFi CD storage with database function, music streamer, Internet radio, networking and etc. You can load all your CD collection into the hard disk of X10, and X10 gives you instant access to any of your music loaded into the hard disk with remote controller in your sofa.

More than a HiFi Component

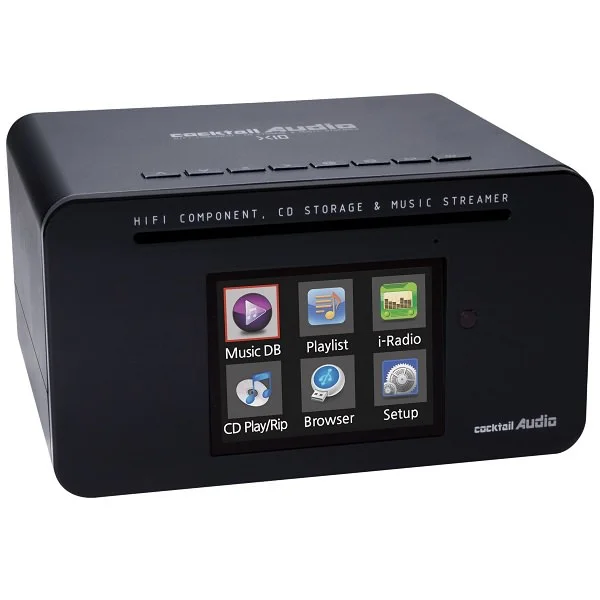

X10 is a revolutionary HiFi Component. X10 has a high speed front loading CD drive built in with 3.5" full color TFT LCD to display well designed high quality UI(user interface). Also, X10 uses 3.5inch SATA hard disk as storage to load all your CD collection. Think about 1 Terabytes or 2 Terabytes hard disk. It’s big capacity enough to load all your CD collection. X10 has an high quality 60W amplifier inside which can deliver wonderful sound through your existing HiFi system or your own loudspeakers. Of course, X10 provides a nice bookshelf speaker as option. Now, let's see in detail what kind of interesting functions it has.

X10 is not big. It’s cute and small enough for your living room. The size is 18Cm(width) x 14.7Cm(depth) x 9.8Cm(height). It fits quite well beside or on your home theater system. Of course, any small space under the TV will be OK for it. Its simple design and high quality finishing will make your living room more comfortable.

Load all your CD collection to the X10

How many audio CDs do you have ?
You have 500 CDs, 1000CDs, 5000CDs or 10000 CDs ?
That huge CDs will surely make your living room look cluttered. Just load all your CDs to X10, and then keep them in the place like attic or garage away from your precious living room. Now, you can scroll all your precious music stored in X10 with remote controller from the sofa. You can rediscover your many beautiful music which had been sleeping in the CD shelf for long time.

1. Encoding Option
• X10 provides four options (MP3, FLAC, OGG or WAV) for encoding. Do you want to enjoy original CD level quality sound? Then, choose WAV option for encoding. Do you want to save the space of X10 hard disk? And, do you want to transfer your CD to your MP3 player for travelling. Then, choose MP3 option.
2. Making CD database
• This is the process to make CD database. Once you input CD information like title, artist, album, year and genre, it will be your CD database by which you can search any music easily.
• CD information will be entered automatically by FreeDB if X10 is connected to network(internet), or FreeDB data is installed in the hard disk of X10. Otherwise, you can also input CD information by manual with your exiting USB keyboard or the remote controller bundled with X10.

Web Server and Web Interface function

Through Web Interface, you can add album cover art, edit ID3-tag info, play and control X10. You can make playlist with songs stored in Music DB of X10.

Gapless Playback function

X10 supports Gapless playback function. For example, even if one song is composed of two tracks in CD, X10 can play the ripped(loaded) tracks without any gap.

How does X10 play the music loaded in the hard disk of X10?

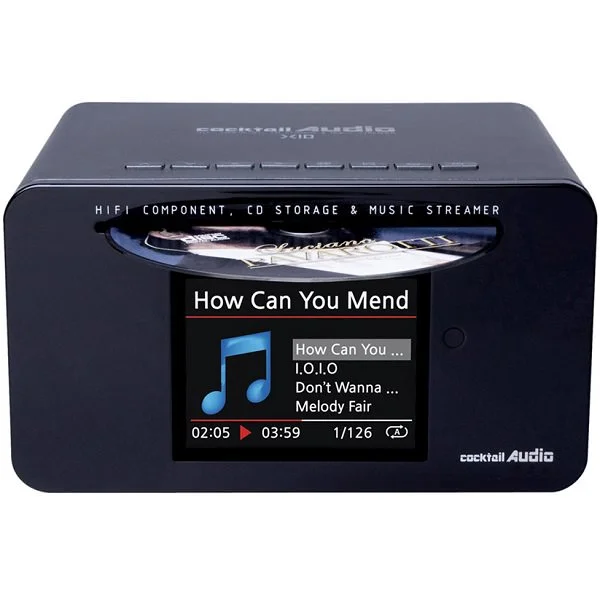

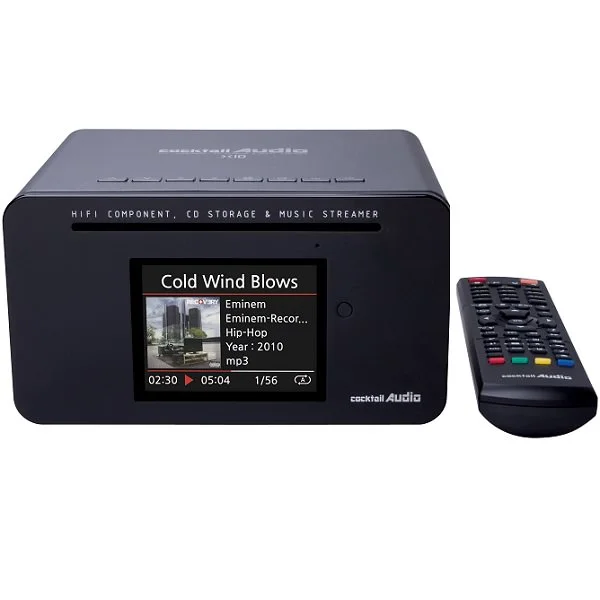

Now, your X10 holds your entire CD collection on the hard disk of it. It will give you instant access to any of your music. With the remote controller of the X10, you can search any music easily by title, artist, album, year or genre that you entered when you load your CDs to X10. Pressing the assigned key of the remote controller and typing a few alphabets make you see the list you want through the 3.5” full color screen in the front of X10.

Your old collection of LP or cassettes! Don't keep them sleeping any more in the attic.

Do you have LPs or cassette tapes ?
Don’t keep your precious and wonderful music in LP or cassette tapes sleeping any more in the attic. Just record them into X10. Once you record them into the hard disk of X10, I am sure you will try enjoying them more frequently because it is far more convienent to have an access to them than before. Just scrolling and pressing a few buttons of the remote controller in your sofa will deliver wonderful music to you. You feel just like that an old friend moved to your neighborhood from far.

Networking, Music Streamer and Music Server

You can add X10 to your network through the ethernet(100Base-Tx/10Base-T) LAN or through WiFi(WiFi is optional). You can play file from cocktailAudio X10 on X10 via iPhone / iPad and Android phones. And, you can play file from server(for example, your PC) on cocktailAudio X10 via iPhone / iPad or Android phone.

• UPnP Server/Client/Renderer and Samba Server/Client
• You can do streaming playback the music files stored in various networked storages like PC, NAS or other networked devices.

Internet Radio & Recording

What an interesting world!

Have you ever listened to a radio broadcasting from other countries? Try it and you will have a big fun. X10 has famous internet radio stations. The stations are classified by genre and country. Also, you can put your favorite stations into the My favorites folder for your convenience. And you can record iRadio broadcasting into the X10 with ease.
* Through ‘Favorite Folder’ option, you can add your favorite internet radio station by yourselves.

Extension to your existing audio system

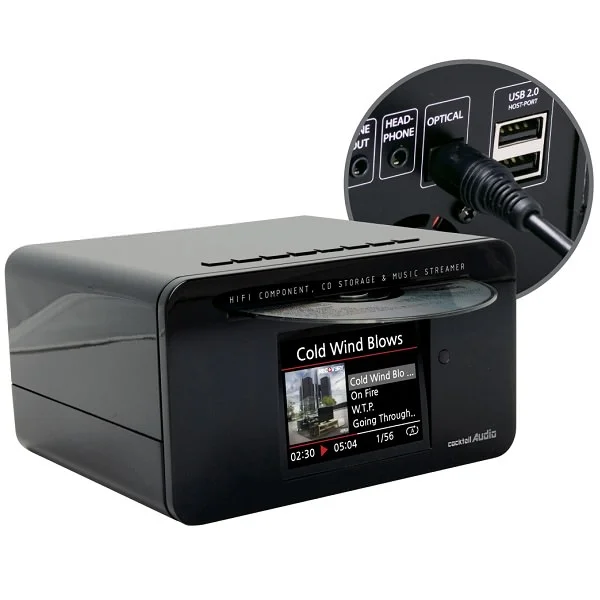

X10 provides SPDIF(Optical out), Line(AUX) in, Line out and loudspeaker connectors. I believe the amplifier of your home theater system has optical input and Line in(AUX in). Just connect X10 to your existing amplifier with optical audio cable or Line cable. Then, you can enjoy brilliant sound through your existing audio system. In this case, X10 plays as just audio source.

Support HD FLAC/HD WAV and various audio codec

X10 supports HD(high definition) FLAC(24bit/192Khz) and WAV(24bit/192Khz). And, it supports various audio codec and format like Apple Lossless Audio Codec(ALAC), AIFF, AIF, M4A, MP3, WMA, AAC, OGG, PCM, PLS, M3U, etc.

HD Audio outputs for each audio out option

USB Host Port of X10

What can you do with USB host port of X10 ? Nowadays, USB hand-held devices like memory stick and MP3P are very popular. I think they are essential devices for our life. X10 works well with these devices. If there is a nice dance music in your USB memory stick, just plug it into the USB host port of X10, then you can enjoy the dance music at a level loud enough for dancing and playing the air guitar. During travelling, some music give you more fun. When you should leave your home for travelling, just plug your MP3P into the X10 and copy your favorite music from X10 to your MP3P.

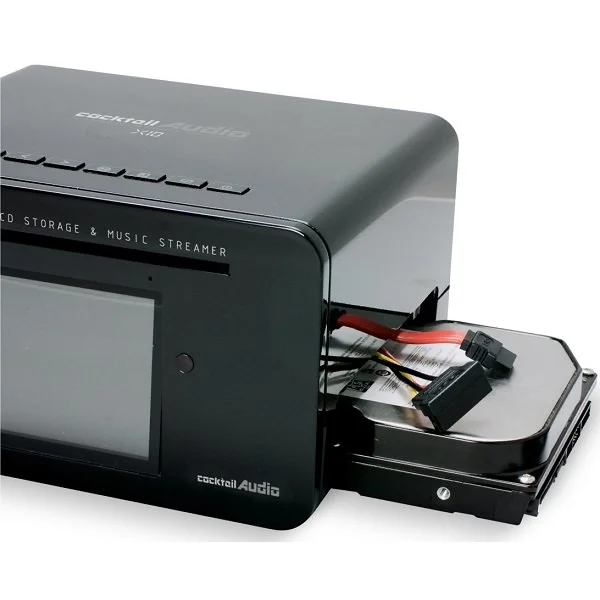

Storage for X10, 3.5 inch SATA hard disk

X10 uses 3.5 inch SATA hard disk for its storage. X10 was tested and verified with up to 2 Tera Bytes 3.5inch SATA hard disk. Currently 2TB is the biggest 3.5" hard disk available in the market. To support bigger capacity hard disk, the firmware of X10 will be updated later.

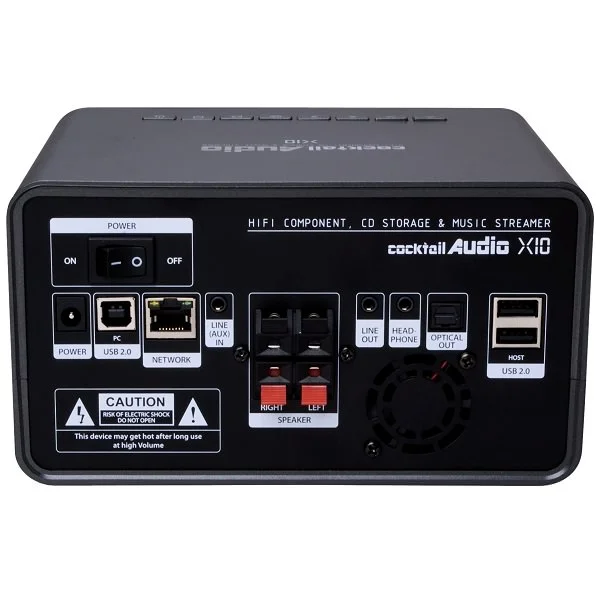

Connection

X10 is very simple to connect. You just need below items

[Necessary connection]
1 Power : AC Adapter(24V/3.5A)
2 Loudspeaker connector : Loudspeaker
10 Power Switch

[Extra connections]
This connection can be useful,
but not necessary.
3 Headphone output : Headphone
4 Line out : Amplifier
5 Line-in(AUX-in) : Tuner, Turntable, etc
6 USB host : USB devices
7 USB target : PC
8 Ethernet/RJ45 : LAN
9 Optical out : Decorder or Amplifier
